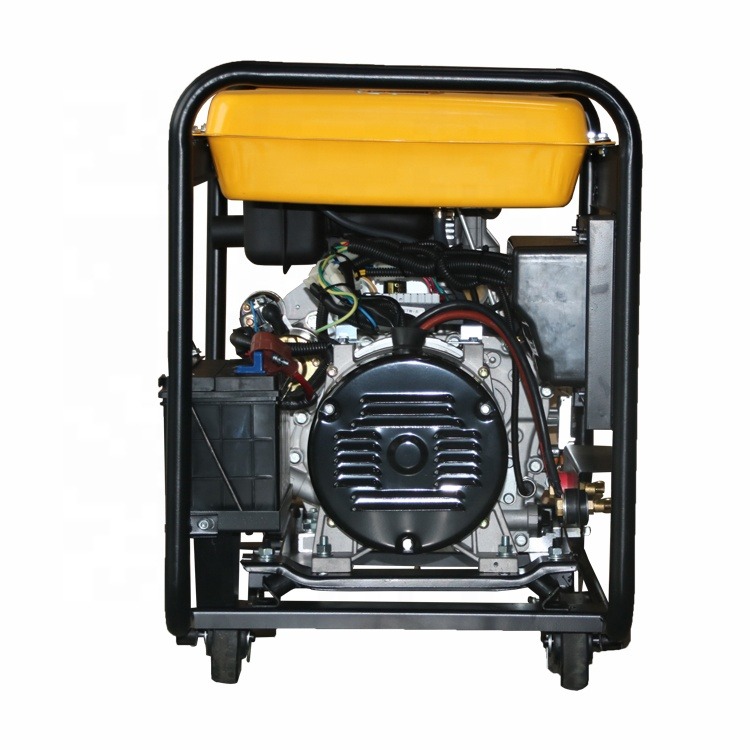

Model No | QT6500EW | QT7500EW | QT8500EW | ||
Rated Frequency (Hz) | 50/60 | 50/60 | 50/60 | ||
Rated voltage (V) | 115/230 ; 120/240 | 115/230 ; 120/240 | 115/230 ; 120/240 | ||
Rated power (kVA) | 4.5 | 4.5 | 4.5 | ||
Rated current (A) | 39.1/19.6 ; 41.7/20.8 | 39.1/19.6 ; 41.7/20.8 | 39.1/19.6 ; 41.7/20.8 | ||
Rated rotation speed (RPM) | 3000/3600 | ||||
Pole No. | 2 | 2 | 2 | ||
Phase number | 1 | 1 | 1 | ||
Power factor (COSΦ) | 1 | 1 | 1 | ||
Rated welding voltage | 65-70 | 65-70 | 65-70 | ||
Rated welding current | 160 | 180 | 200 | ||
Welding voltage | 25-30 | ||||
Welding load continues ratio | 60% | 60% | 60% | ||
Welding current adjusting range | 50-180 | 50-200 | 50-200 | ||
Engine model No | QT186FAE | QT188FAE | QT192FAE | ||
Engine Type | Single cylinder, in-line, 4-stroke, air-cooled, direct-injected | ||||
Lubrication system | Pressure Splashed | ||||
Lube oil brand | CD Grade Above or SAE 10W-30, SAE15W-40 | ||||
Lube oil capacity | 1.65 | 1.65 | 1.65 | ||
Starting system | Recoil starter or 12V electric starter | ||||
Fuel type | 0#(summer), -10#(winter), -35#(chillness) Diesel | ||||
Fuel tank capacity | 13.5 | 13.5 | 13.5 | ||
Packaging Size (LxWxH) (mm) | 720*492*655 | 720*492*655 | 720*492*655 | ||
Gross weight (kg) | 110 | 110 | 115 | ||
