good waste water treatment product centrifugal slurry pump for mine with good factory centrifugal slurry pump manufacturer

1.0 Sets
MOQ
good waste water treatment product centrifugal slurry pump for mine with good factory centrifugal slurry pump manufacturer
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 3 years
Customized support: OEM, ODM, OBM
Model Number: ZA
Application: wastewater treatment, Sewage
Power Source: Electric
Pressure: high pressure, High Pressure
Structure: Single-stage Pump
Outlet Size: 40-1000mm
Voltage: 220v/380v
Pump Diameter: 1''~18''
Capacity: Up to 5400 m3/h
Head: Up to68m
Usage: mining
Power: 15-1200 KW
証明: ce
基本情報
証明: ce
Model Number: ZA
お支払配送条件
Packaging Details: Standard packing,or as required
Supply Ability: 1200 Set/Sets per Month
製品の説明
Product Description
Titanium centrifugal sludge transfer pumps

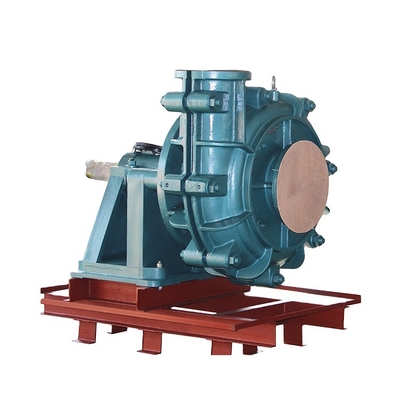

Type ZA(R) pumps are single-stage,single-suction,cantilevered,double casing,horizontal, centrifugal slurry pump. They are designed for handing abrasive, high concentration slurries in the mining,coal,metallurgical, power, building material and other industrial departments. This series of pump is suitable for various liquids performance, which is the first select product for convey mine mill slurry and tails slurry.
40-80% for higher density, strong abrasive slurries 40-100% for medium density, medium abrasive slurries 40-120% for lower density, lower abrasive slurries
Pump Diameter
1''~18''
Capacity to
5400 m3/h
Head to
68m
Structural features
★ A large diameter with a short overhang ensure the rigidity of shaft, suitable for high power condition. ★ Hardened stainless steel shaft sleeve with ‘O’ ring seals at both ends. A slip fit allows the sleeve protects the shaft from the wear and corrosion. ★ The deputy vanes in both former and rear cover of Impeller relieve seal pressure and minimize recirculation. ★ Casing is made of ductile iron, ribs help casing to stand high pressure. ★ The wet parts are made of high-chrom alloy or rubber, having the abrasion-resist, corrosion-resist and impact erosion-resist properties, improved the service life of pump. ★ The wet parts are made of metal or rubber are interchangeable or mixed use, suited different working condition. ★ Impeller adopt the method of wide flow and vane concave to improve flow and corrosion resistance, prolong service life. ★ The shaft seal may be adoptable of packing seal,expeller seal and mechanical seal to fit different working conditions. ★ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. ★ The bearing Assembly have the grease lubrication and oli lubrication are optional depend on the usage. ★ Adopted the oil lubrication bearing assembly can effectively lower the high operating temperature and reduce bearing fault ★ The grease lubrication bearing assembly easy installation and adjustment, simple structure and easy to maintain and perform reliably.
Clear water performance
1.Capacity range recommended 50%Q'≤Q≤110%Q' (Q'=Capacity at Max. eff. point) 2. M means Alloy wear-resistant material, R means rubber
Seal Options

Glond seal

Most popular type of seal. Clean water at a certain pressure being injected into the packing through the lantern restrictor, preventing leakage from casing. Simple structure, easy maintenance and low cost, suitable for where expeller seal unsuitable.

Expeller seal

The expoller generate a reverse centrifugal force to prevents the leakage. It can be used for single-stage pump or the first pump
of multiple pumps in series when the positive pressure at suction side is larger than that at discharge side by no more than 10%.No gland water is needed, the slurry will not be diluted and the sealing effect is reliable, used in where dilution of slurry is
not allowed.

Mechanical seal

Suitable for applications where no extra substance is allowed to mix with the fluid being pumped, such aschemical or food
industry.
Outline Dimension
